High Voltage Stack Battery 220V 10KW 20kWh 30kWh LifePO4 Energy Storage Battery Pack For Solar System

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Battery Type : LiFePO4

Output Power Range : 10~20 kWh

Protection Class : IP54

Cycle life : 6000 Cycles

Warranty : 5 YEARS

Nominal Voltage : 204V

Contact Now

High Voltage Stack Battery 220V 10KW 20kWh 30kWh LifePO4 Energy Storage Battery Pack For Solar System

Product Description

Model No	204V50Ah	307V50Ah	409V50Ah	512V50Ah
Voltage	204V	307V	409V	512V
Capacity	50Ah
Energy	10.2KWh	15.35KWh	20.5KWh	25.6KWh
Dimensions(LWH)	590360600mm	590360750mm	590360900mm	5903601050mm
Weight(kg)	95kg(about)	133kg(about)	172kg(about)	212kg(about)
Operation temperature	-10℃~60℃@60±20%RelativeHumidity
Storage temperature	0℃~45℃@60±20%RelativeHumidity
Protection grade	IP21
Operation voltage	204V	307V	409V	512V
Max.chargingvoltage	233V	350V	467V	467V
Cut-off discharge voltage	160V	240V	320V	400V
Max.Chargingcurrent	25A
Max.Discharging current	50A

Inverter Type	Single Phase	3 Phase	Split Phase
Output Power	3-16KW	5-30KW	5-8KW
Output Voltage	220/230/240V	220/380V, 230/400	120/240V

High Voltage Stack Battery 220V 10KW 20kWh 30kWh LifePO4 Energy Storage Battery Pack For Solar System

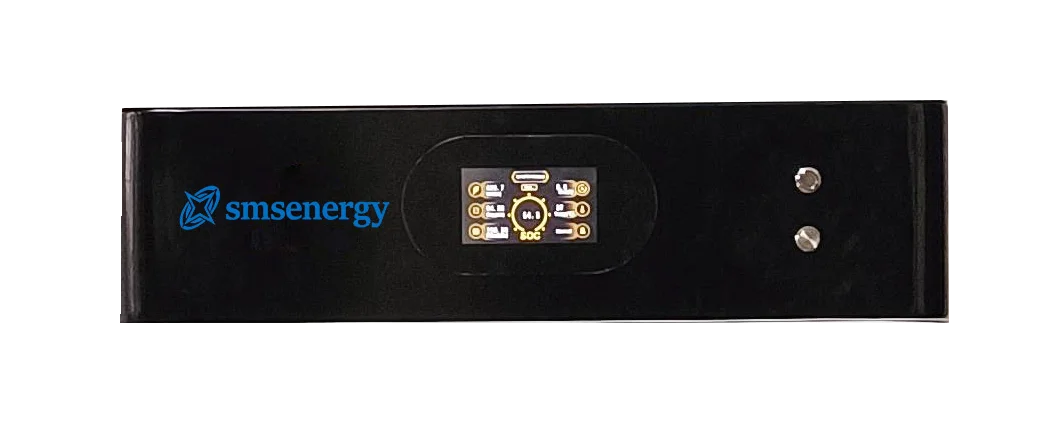

Touch Display and High Voltage Box

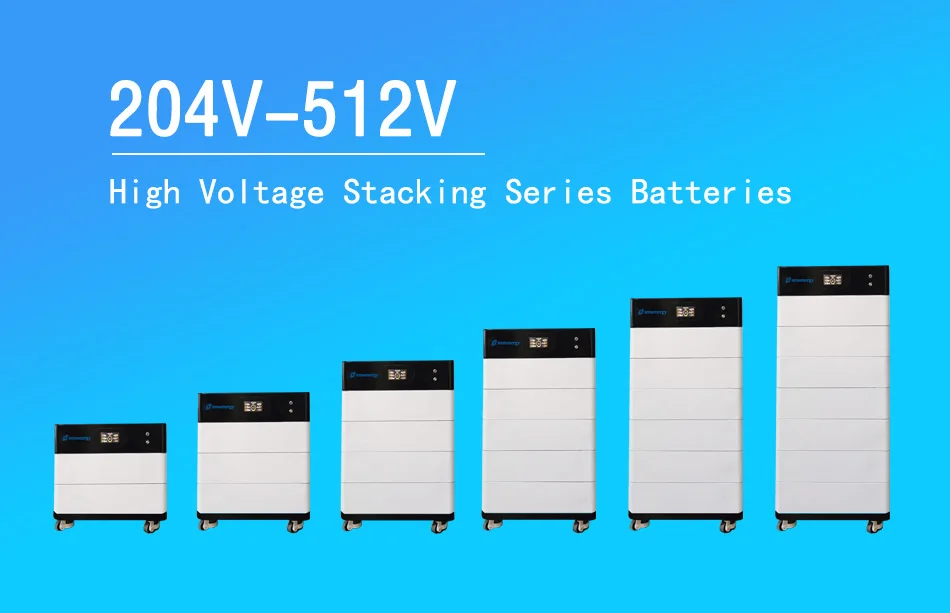

Single module with 5 kilowatt hours of electricityfreely stacked

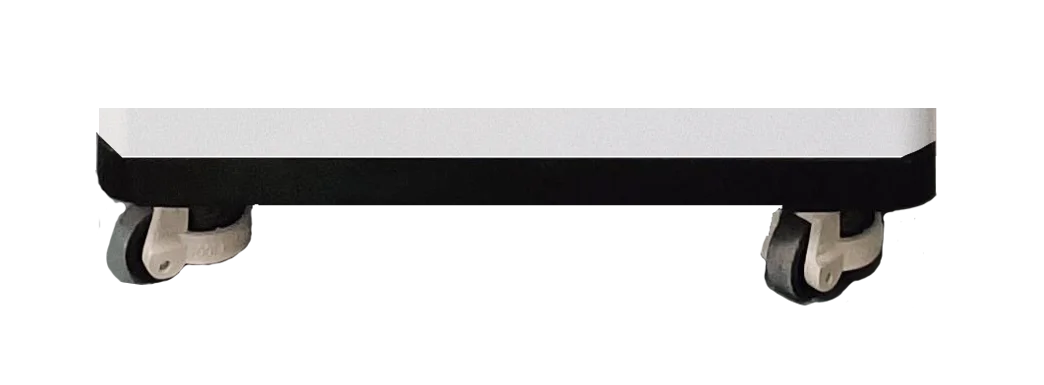

Load bearing casters for easy movement

Company Introduction

We passed ISO9001:2000 , also we have gained certification KC, UL, CE, FCC, CB, ROHS, REACH, PSE, UN38.3 and so on. With the effort of all Hysincere staffs, our products have been sold to over 30 countries including Europe, North America, Southeast Asia, Singapore, Taiwan, South Korea and other countries and regions, we have been widely accepted and got very positive feedbacks Standing by our tenet: "credit, enterprise, solidarity, mutualism", Hysincere sincerely hope to cooperate with you in order to achieve collective progress.

FAQ

Q: Are you trading company or manufacturer?

A: We are original factory.

Q: Do you provide after-sales serive?
A: it depends on quantity.

Q: Do you have MoQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.

Q: Can l have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made
asrequire.

Q: How can l do if l need more help for the order?
A: You can chat our sales online or send inquiry email,we will respond you ASAP
